Car Hood Insulation: Sound Deadening & Heat Insulation Guide

What Is Car Hood Insulation?

Car hood insulation, also called hood liner, hood insulation pad, or automotive hood insulation, is a thermal and acoustic insulation material installed underneath the vehicle's hood.​
Depending on the design, a hood insulation system may contain:​
• Acoustic foam​
• Nonwoven fiber​
• Polyester fiber​
• Melamine foam​
• Polyurethane foam​
• Rubber-based sound deadening materials​
• Aluminum foil or aluminized film​
• Heat-resistant composite materials​
• Butyl sound deadening layers​
Different materials perform different functions. Acoustic foam and fiber materials primarily absorb airborne engine noise, while dense sound deadening materials can help control vibration in the metal hood. Reflective aluminum foil can also reduce radiant heat transfer from the engine compartment.​


Why Does a Car Need Hood Insulation?

The underside of the hood is exposed to both engine noise and engine heat.​
Without adequate insulation, the metal hood can reflect engine noise back into the engine compartment and toward the passenger compartment. The large metal surface can also radiate heat and transfer thermal energy toward the exterior hood panel.​
A properly engineered hood insulation system can provide several benefits:​
1. Reduce Engine Noise
Engine components generate mechanical and combustion noise across a wide range of frequencies. Some of this sound travels upward toward the hood.​
An acoustic hood liner can absorb part of this airborne sound energy, reducing reflections from the metal hood.​
This is particularly useful for controlling:​
• Engine mechanical noise​
• Injector noise​
• Valve-train noise​
• Intake noise​
• High-frequency engine sounds​
• General engine-bay acoustic reflections​
However, hood insulation should not be expected to eliminate all engine noise. Low-frequency noise may require additional treatment at the firewall, floor, doors, or other parts of the vehicle.​
2. Reduce Hood Panel Vibration
A large sheet-metal hood can vibrate when exposed to engine-bay acoustic energy and mechanical excitation.​
A butyl-based automotive sound deadening material or other constrained-layer damping material can be used to control panel vibration.​
This is different from acoustic absorption:​
Sound absorption → absorbs airborne sound energy.​
Vibration damping → reduces vibration of the metal panel.​
For maximum performance, some automotive applications use a combination of damping and acoustic insulation materials.​
3. Reduce Heat Transfer
The engine compartment can become extremely hot, especially around turbochargers, exhaust manifolds and other high-temperature components.​
A thermal insulation layer underneath the hood can reduce heat transfer toward the hood panel.​
Reflective foil surfaces can also help reflect radiant heat away from the hood. Some commercial hood insulation systems combine acoustic foam with an aluminized facing specifically for this purpose.​
4. Help Protect the Hood and Paint
Repeated exposure to high temperatures can place additional thermal stress on the hood and its paint system.​
Hood insulation can reduce the amount of heat reaching the underside of the hood and help limit repeated heat cycling.​
This can be particularly useful for:​
• Turbocharged vehicles​
• Performance vehicles​
• Diesel engines​
• Vehicles operating in hot climates​
• Vehicles frequently exposed to heavy engine loads​
Hood insulation does not replace a dedicated heat shield around an exhaust manifold or turbocharger, but it can provide an additional layer of thermal protection.​


Car Hood Sound Deadening vs. Heat Insulation

It is important to understand that sound deadening and heat insulation are not exactly the same thing.​
Function
Main Purpose
Typical Materials
Vibration damping
Reduce hood panel vibration
Butyl rubber, damping mats
Sound absorption
Absorb engine noise
PU foam, melamine foam, fiber
Sound insulation
Block or reduce sound transmission
MLV, composite barriers
Thermal insulation
Slow heat transfer
Foam, fiber, thermal composites
Radiant heat reflection
Reflect radiant heat
Aluminum foil, aluminized film
A high-performance hood insulation product may combine several of these functions into one multilayer construction.​


What Is the Best Material for Car Hood Insulation?

There is no single material that is ideal for every vehicle.​
The correct material depends on the required combination of:​
• Temperature resistance​
• Acoustic performance​
• Thermal performance​
• Weight​
• Thickness​
• Flexibility​
• Moisture resistance​
• Adhesion​
• Long-term durability​
• Cost​
Acoustic Foam
Open-cell acoustic foam can provide good sound absorption, particularly for airborne engine noise.​
It is commonly used when the primary objective is reducing reflected engine noise.​
Closed-Cell Foam
Closed-cell foam provides good thermal insulation and moisture resistance and can be useful where thermal management is important.​
However, closed-cell foam generally should not be selected solely on the assumption that it will provide the same acoustic absorption performance as an open-cell acoustic material.​
Butyl Sound Deadening Material
Butyl-based damping materials are useful for controlling vibration in metal panels.​
When applied to the underside of a hood, they can reduce panel resonance and vibration.​
Aluminum Foil
Aluminum foil or aluminized film is commonly used as a reflective facing.​
It can help reduce radiant heat transfer while also providing a durable surface for certain under-hood applications.​
Composite Hood Insulation
For applications requiring both sound and heat control, a multilayer construction can be more effective than relying on a single material.​
For example:​
Aluminum foil + acoustic foam + damping layer​
can provide a combination of:​
• Heat reflection​
• Thermal insulation​
• Sound absorption​
• Vibration control​


How Does Hood Insulation Reduce Engine Noise?

There are several different noise transmission paths inside a vehicle.​
Engine noise can travel through the air, through structural components, and through the vehicle's body structure.​
A hood insulation system primarily works by controlling sound and vibration around the engine compartment.​
A typical system may work in three stages:​
Engine → Airborne noise → Acoustic absorber → Reduced reflected noise​
and:​
Engine vibration → Hood panel → Damping layer → Reduced panel vibration​
This is why combining acoustic absorption with vibration damping can provide better results than using only one type of material.​
Automotive research has specifically investigated hood liner construction and found that factors such as air gaps, substrate material, density and airflow resistance affect acoustic absorption.​


How to Install Car Hood Insulation

Correct installation is important for both acoustic and thermal performance.​
Step 1: Remove the Existing Hood Liner
If the vehicle already has a factory hood liner, remove it carefully and inspect the condition of the material.​
Replace materials that are:​
• Crumbling​
• Sagging​
• Brittle​
• Water damaged​
• Deformed​
Step 2: Clean the Hood Surface
The underside of the hood should be clean and free from:​
• Oil​
• Grease​
• Dust​
• Wax​
• Dirt​
• Loose particles​
A clean surface is especially important when using adhesive-backed materials.​
Step 3: Measure and Cut the Material
Use the original hood liner as a template when possible.​
Cut the material carefully around:​
• Hood reinforcement ribs​
• Clips​
• Holes​
• Curved areas​
• Structural components​
Avoid interfering with hood mechanisms or components inside the engine compartment.​

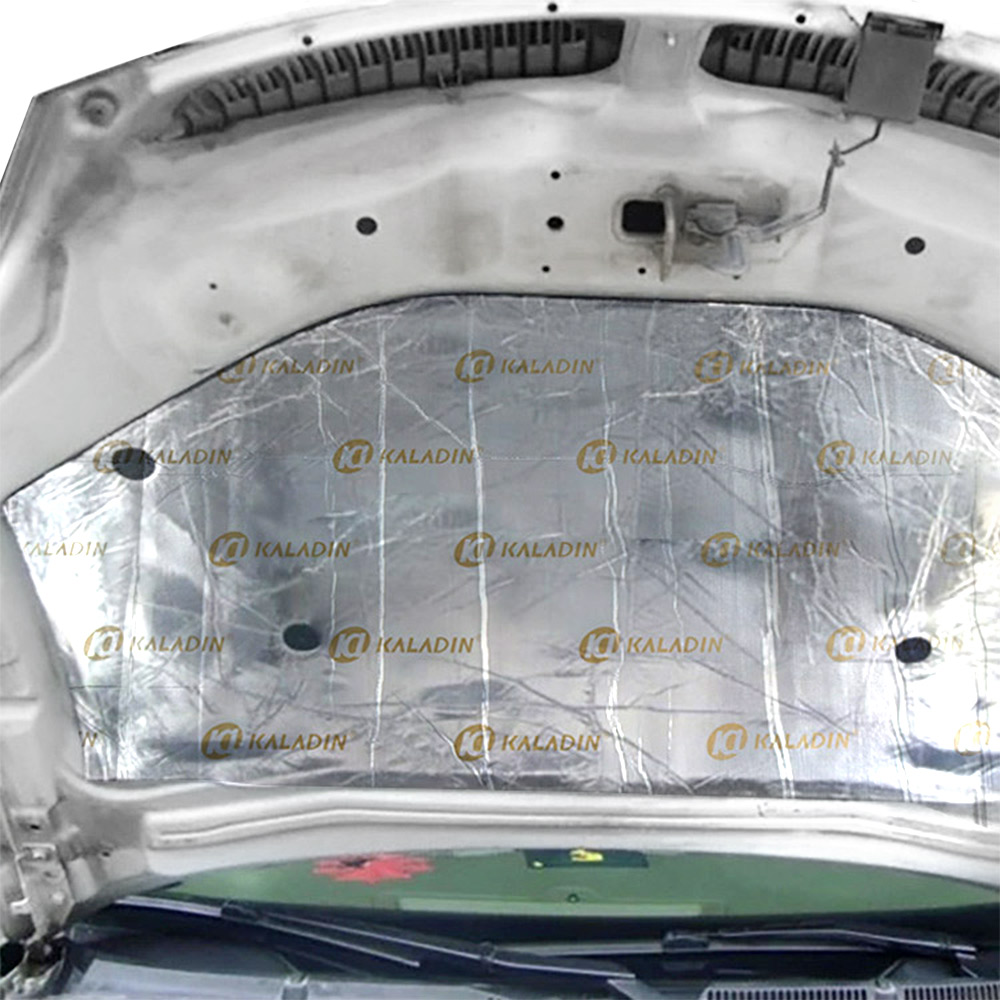

Step 4: Apply the Material
Press the insulation firmly against the hood surface.​
For adhesive-backed products, consistent pressure is important to ensure good contact.​
For damping materials, a roller can be useful for pressing the material firmly onto the metal surface.​
Step 5: Check Clearance
Before closing the hood, make sure the insulation does not interfere with:​
• Engine components​
• Turbochargers​
• Exhaust components​
• Wiring​
• Moving parts​
• Hood latches​
Always maintain appropriate clearance from high-temperature components.​


How Thick Should Car Hood Insulation Be?

There is no universal thickness for hood insulation.​
The optimal thickness depends on:​
• Target frequency range​
• Required sound absorption​
• Thermal insulation requirements​
• Available hood clearance​
• Material density​
• Vehicle design​
• Weight limitations​
Automotive hood liners are often constrained by the limited space available underneath the hood. SAE research has noted that hood and dash insulators commonly have relatively limited thickness, which can restrict low- and mid-frequency absorption.​
Therefore, simply making the material thicker does not automatically guarantee better performance.​
Material structure and acoustic properties are equally important.​


Can Hood Insulation Reduce Engine Heat?

Yes, hood insulation can reduce heat transfer toward the hood, but it should not be confused with a system designed to cool the engine.​
The main purpose is to reduce the amount of heat transferred from the engine compartment to the hood panel.​
A thermal insulation system can help:​
• Reduce heat transfer​
• Reflect radiant heat​
• Protect the hood surface​
• Reduce thermal cycling​
• Improve thermal comfort around the vehicle​
However, it should not block required ventilation or interfere with the vehicle's cooling system.​

Is Car Hood Insulation Worth It?
For many vehicles, adding or replacing hood insulation can be worthwhile, especially when the original liner is damaged or when the vehicle produces significant engine noise and heat.​
It can be particularly beneficial for:​
• Older vehicles with deteriorated hood liners​
• Performance cars​
• Turbocharged vehicles​
• Diesel vehicles​
• Modified vehicles​
• Vehicles used in hot climates​
• Vehicles where engine noise is noticeable inside the cabin​
For the best overall NVH improvement, hood insulation should normally be considered as part of a complete vehicle soundproofing strategy rather than as a standalone solution.​

Choosing the Right Automotive Hood Insulation Material
When selecting a hood insulation material, consider the following specifications:​
Temperature Resistance
The material and adhesive should be suitable for the expected under-hood temperature range.​
Acoustic Performance
Look for relevant acoustic test data such as:​
• Sound absorption coefficient​
• NRC​
• Sound transmission loss​
• Noise reduction​
• Frequency-dependent acoustic performance​
Thermal Performance
Useful thermal specifications may include:​
• Thermal conductivity​
• Thermal resistance​
• Maximum service temperature​
• Radiant heat reflectivity​
Moisture Resistance
Under-hood materials can be exposed to humidity, condensation, water and automotive fluids, so moisture resistance is important.​
Adhesive Performance
For adhesive-backed products, the adhesive should maintain adhesion during repeated heating and cooling cycles.​
Weight
Automotive materials should provide the required performance without adding unnecessary weight.​

Conclusion
Car hood insulation plays an important role in automotive noise and thermal management. A well-designed hood liner can help absorb engine noise, reduce hood panel vibration, limit heat transfer, and protect the underside of the hood.​
For the best results, manufacturers and automotive aftermarket companies should select materials according to the specific application rather than focusing only on thickness.​
A combination of sound deadening, acoustic absorption, thermal insulation and heat reflection can provide a more comprehensive solution for modern automotive hood applications.​
The right material should balance acoustic performance, thermal resistance, weight, flexibility, moisture resistance, adhesion and long-term durability.​
