Introduction

Noise, vibration and harshness (NVH) control has become an important part of modern vehicle engineering. Whether the vehicle uses an internal combustion engine, hybrid powertrain or electric drivetrain, unwanted vibration can affect cabin comfort, component durability and perceived vehicle quality.

Automotive damping materials provide an effective way to control structural vibration by dissipating mechanical energy before it propagates through the vehicle body and chassis. Depending on the application, damping solutions can be applied to engine compartments, firewalls, floor panels, wheel wells, chassis structures and other vibration-sensitive areas.

Modern NVH strategies commonly combine damping, sound insulation and sound absorption rather than relying on a single material.

---

What Are Automotive Damping Materials?

Automotive damping materials are engineered materials designed to reduce the amplitude of mechanical vibration in vehicle structures.

When a metal panel or structural component vibrates, a viscoelastic damping layer can deform with the structure. Part of the vibration energy is dissipated as heat within the damping material, reducing structural resonance and vibration transmission. Constrained-layer damping is one established approach used in automotive NVH engineering.

Common automotive damping materials include:

• Butyl rubber damping sheets
• Viscoelastic damping compounds
• Constrained Layer Damping (CLD) materials
• Rubber-based vibration isolators
• Polyurethane damping materials
• Liquid-applied sound damping materials
• Acoustic foam and fiber-based materials
• Mass Loaded Vinyl (MLV) for sound insulation

The appropriate material depends on the vibration frequency, temperature, available installation space, weight target and required durability.

---

Why Engine and Chassis Damping Is Important

The engine and chassis are major pathways for vibration transmission.

In conventional vehicles, combustion forces, rotating components and drivetrain operation generate vibration. Engine mounts then act as an important interface between the powertrain and chassis, helping isolate vibration from the vehicle structure. Research on engine mounting systems highlights the importance of frequency- and amplitude-dependent stiffness and damping characteristics.

The chassis also receives vibration from:

• Road irregularities
• Tire-road interaction
• Suspension movement
• Drivetrain operation
• Braking and acceleration
• Structural resonance
• Wheel and tire imbalance

If these vibrations are not properly controlled, they can become structure-borne noise and contribute to rattles, booming sounds and harshness inside the cabin.

---

Types of Automotive Damping Materials

1. Butyl Rubber Damping Sheets

Butyl rubber damping sheets are widely used for automotive vibration control because of their viscoelastic properties, adhesion and environmental resistance.

They are particularly useful for treating large metal panels that can resonate during vehicle operation.

Typical applications include:

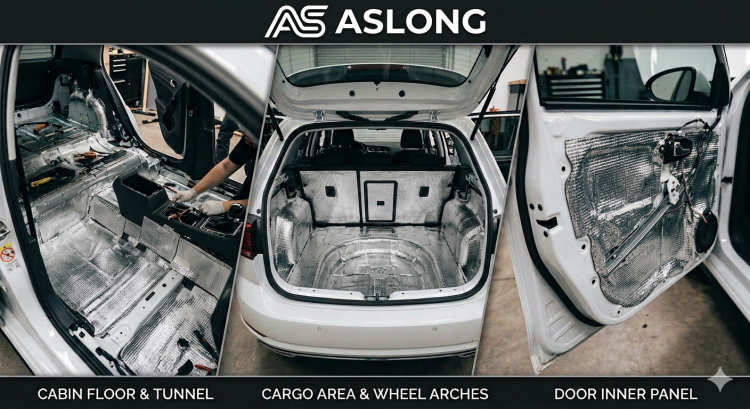

• Vehicle floors
• Doors
• Firewalls
• Engine compartments
• Hood panels
• Wheel arches
• Trunk panels
• Chassis panels

Aluminum foil-faced butyl damping sheets can provide a practical combination of structural damping, surface protection and thermal resistance.

For B2B automotive applications, manufacturers can also customize thickness, dimensions, adhesive systems and surface structures according to vehicle design requirements.

---

2. Constrained Layer Damping Materials

Constrained Layer Damping, or CLD, generally consists of a viscoelastic layer positioned between a structural panel and a relatively stiff constraining layer.

When the structure bends, the viscoelastic layer experiences shear deformation and dissipates vibration energy.

CLD materials are commonly considered for:

• Floor panels
• Engine covers
• Body panels
• Roof structures
• Firewall areas
• Chassis components

The performance of a damping treatment is influenced not only by the material's loss factor but also by the mass and stiffness changes introduced into the treated structure.

This is why material selection should be based on the complete panel structure rather than simply choosing the material with the highest damping rating.

---

Engine Applications of Damping Materials

Engine Firewall Damping

The firewall separates the engine compartment from the passenger cabin and is an important NVH transmission path.

Applying appropriate damping and insulation materials to the firewall can help reduce structure-borne vibration and limit the transmission of engine-related noise into the cabin.

A multilayer solution may combine:

Metal panel → damping layer → acoustic insulation → barrier layer

The exact configuration depends on the vehicle platform and NVH target.

---

Engine Cover and Hood Damping

Large metal engine covers and hood panels can vibrate when exposed to engine excitation.

Damping materials can reduce panel resonance and help improve the acoustic environment around the engine compartment.

Typical solutions include:

• Butyl rubber damping sheets
• CLD materials
• Lightweight acoustic foams
• Fiber-based insulation
• Liquid-applied damping coatings

Liquid-applied damping technologies have also been developed for automotive body structures, particularly where lightweight construction and high-frequency vibration control are important.

---

Engine Mount and Vibration Isolation

Engine mounts are fundamentally different from flat-panel damping sheets, but they are another important part of automotive vibration control.

The mount connects the engine or powertrain to the chassis while helping isolate vibration.

Rubber and polymer-based materials are widely used in mounts and vibration isolation components because their stiffness and damping characteristics can be engineered for different operating conditions.

The design challenge is to balance:

• Static load capacity
• Dynamic stiffness
• Vibration isolation
• Durability
• Temperature resistance
• Packaging requirements

For demanding applications, engineers may use elastomeric, hydraulic or other advanced mounting technologies.

---

Chassis Applications of Damping Materials

Floor Panel Damping

Vehicle floors are directly connected to the chassis and can transmit road and drivetrain vibration into the passenger compartment.

Damping sheets applied to large floor panels can reduce structural resonance and improve perceived cabin refinement.

This is particularly important for modern lightweight vehicles because thinner or lighter structures can require additional NVH treatment.

---

Wheel Arch and Wheel Well Damping

Wheel areas are exposed to significant excitation from:

• Tire vibration
• Road impacts
• Gravel
• Water
• Suspension movement
• Tire cavity resonance

A combination of damping sheets, acoustic absorbers and insulation materials can help reduce road noise transmission.

For EVs, tire and road noise can become especially noticeable because the powertrain produces less conventional engine noise. Recent automotive NVH research and industry solutions therefore place greater emphasis on tire, chassis and higher-frequency noise control.

---

Suspension and Chassis Isolation

Suspension components transmit forces between the road and vehicle body.

Specialized elastomeric materials can be used in:

• Suspension mounts
• Coil spring isolators
• Jounce bumpers
• Top mounts
• Steering isolation components

For example, microcellular polyurethane elastomers are used in chassis applications to manage vibration, energy absorption and structure-borne noise.

These components require different material properties from conventional flat-panel damping sheets because they must withstand mechanical loads and repeated deformation.

---

Damping vs. Sound Insulation vs. Sound Absorption

One of the most important concepts in automotive NVH engineering is that damping, insulation and absorption are not the same thing.

A well-designed automotive NVH package often combines several technologies.

For example:

Butyl damping sheet + acoustic foam + MLV barrier

can address structural vibration, airborne noise and sound transmission at the same time.

---

How to Choose the Right Automotive Damping Material

Selecting an automotive damping material should be based on the actual application rather than simply choosing the thickest or heaviest product.

1. Operating Temperature

Engine compartments can experience significantly higher temperatures than interior areas.

The material should maintain its mechanical and adhesive performance within the expected temperature range.

2. Vibration Frequency

Different materials perform differently across different frequency ranges.

Engine vibration, road vibration, tire excitation and electric motor noise can occur at different frequencies, so engineers should evaluate the material against the actual vibration spectrum.

3. Weight

Vehicle manufacturers continuously pursue weight reduction.

Adding damping material can improve NVH, but excessive mass can negatively affect vehicle efficiency. Therefore, the goal is usually optimized damping performance per unit weight.

4. Adhesion

For self-adhesive damping sheets, adhesive performance is critical.

The adhesive system should provide:

• Strong initial adhesion
• Reliable long-term bonding
• Temperature resistance
• Moisture resistance
• Compatibility with the substrate

5. Environmental Resistance

Automotive materials may encounter:

• Water
• Humidity
• Oil
• Dust
• Heat
• Cold
• Road salt
• Mechanical vibration

Durability testing should therefore be considered during material selection.

---

Automotive Damping Materials for Electric Vehicles

The transition toward electric vehicles is changing automotive NVH requirements.

EV powertrains can significantly reduce conventional engine-related noise, which means previously masked sources such as tire-road noise, wind noise and structural vibration may become more noticeable.

High-speed electric motors can also introduce new high-frequency acoustic and vibration challenges.

As a result, EV manufacturers are increasingly interested in:

• Lightweight damping materials
• High-frequency vibration control
• Tire cavity noise reduction
• Chassis isolation
• Battery-related NVH solutions
• Advanced polymer damping systems
• Integrated acoustic packages

The future of automotive NVH is therefore moving toward lighter, thinner and more application-specific damping systems.

---

Key Benefits of Automotive Damping Materials

Properly selected damping materials can provide several benefits:

Reduced Vibration

They reduce structural vibration and panel resonance.

Lower Noise

Reducing structural vibration can help decrease structure-borne noise inside the vehicle.

Improved Driving Comfort

Lower NVH levels contribute to a smoother and more refined driving experience.

Better Component Durability

Controlling excessive vibration can help reduce mechanical stress on selected components and interfaces.

Improved Acoustic Quality

A quieter cabin can improve speech intelligibility and make the vehicle's audio system easier to enjoy.

Greater Design Flexibility

Modern damping materials can be supplied in different thicknesses, shapes and configurations to suit vehicle-specific applications.

---

Future Trends in Automotive Damping Materials

The automotive damping materials industry is moving toward several major trends.

Lightweight NVH Materials

Vehicle manufacturers are looking for materials that provide high damping performance without adding unnecessary weight.

Multifunctional Materials

Future products may combine:

Vibration damping + sound insulation + thermal insulation

within a single multilayer construction.

Sustainable Materials

Environmental requirements are encouraging the development of recyclable, lower-emission and bio-based NVH materials.

Advanced Polymer Systems

Engineers are increasingly using engineered elastomers, polyurethane systems and other polymers for chassis and suspension applications.

EV-Specific NVH Solutions

As EV platforms evolve, damping systems will increasingly target tire noise, electric motor excitation, battery-related vibration and high-frequency structural noise.

---

Conclusion

Automotive damping materials play an important role in controlling vibration, noise and harshness in modern vehicles.

From engine compartments and firewalls to floor panels, wheel arches and chassis structures, properly selected damping materials can reduce structural resonance and improve vehicle comfort.

Butyl rubber damping sheets, constrained layer damping systems, polymer isolators, polyurethane materials and acoustic solutions each have their own advantages and application areas.

For OEMs, Tier suppliers and aftermarket manufacturers, the best approach is to evaluate damping performance, frequency response, weight, temperature resistance, adhesion, durability and installation requirements together.

As vehicles become lighter, quieter and increasingly electrified, advanced automotive damping materials will remain an important part of next-generation NVH engineering.
