Introduction

As automotive technology continues to evolve, manufacturers are placing greater emphasis on Noise, Vibration, and Harshness (NVH) control. Consumers today expect vehicles that are quieter, smoother, and more comfortable than ever before. Whether in traditional internal combustion engine (ICE) vehicles, hybrid models, or electric vehicles (EVs), controlling unwanted vibrations and noise has become a critical aspect of vehicle design.

One of the most effective solutions is the use of automotive damping materials in engine and chassis applications. These materials absorb, dissipate, and reduce vibrations before they can generate noise or compromise vehicle comfort.

This article explores the importance of automotive damping materials, their applications, types, benefits, and future trends in vehicle engineering.

---

What Are Automotive Damping Materials?

Automotive damping materials are specialized products designed to convert mechanical vibration energy into low-level heat energy, thereby reducing resonance and vibration transmission throughout the vehicle structure.

They are commonly installed in:

• Engine compartments
• Floor panels
• Firewalls
• Chassis frames
• Wheel wells
• Doors
• Roof panels
• Trunk compartments

The primary goal is to minimize structure-borne noise and improve overall driving comfort.

---

Why Engine and Chassis Damping Matters

Engine Vibrations

The engine is one of the largest sources of vibration in a vehicle. During operation, combustion events, moving components, and rotational forces generate continuous vibrations.

Without proper damping:

• Cabin noise increases
• Driver fatigue rises
• Components experience accelerated wear
• Vehicle refinement decreases

Modern vehicles use damping materials around the engine bay and firewall to isolate these vibrations before they reach the passenger compartment.

---

Chassis Vibrations

The chassis constantly experiences vibrations from:

• Road irregularities
• Tire contact
• Suspension movement
• Drivetrain operation
• Aerodynamic forces

These vibrations can travel through the vehicle body and produce:

• Rattles
• Structural resonance
• Road noise
• Unpleasant cabin acoustics

Damping materials help suppress these vibrations and improve vehicle stability and comfort.

---

Types of Automotive Damping Materials

1. Butyl Rubber Damping Sheets

Butyl rubber is one of the most widely used damping materials in the automotive industry.

Features

• Excellent vibration absorption
• High durability
• Water resistance
• Heat resistance
• Long service life
• Strong self-adhesive properties

Applications

• Engine firewall
• Floor panels
• Chassis sections
• Wheel arches
• Doors

Many premium automotive soundproofing systems use aluminum foil-faced butyl rubber sheets for enhanced performance.

---

2. Constrained Layer Damping (CLD) Materials

CLD systems combine:

• A viscoelastic damping layer
• A rigid constraining layer

When vibration occurs, the damping layer deforms and dissipates energy.

Advantages

• High damping efficiency
• Lightweight design
• Excellent NVH performance

Common Uses

• Floor structures
• Roof panels
• Engine covers
• Chassis components

---

3. Foam-Based Acoustic Damping Materials

Acoustic foams are often paired with damping sheets to provide both vibration control and sound absorption.

Popular materials include:

• NBR foam
• PU foam
• Melamine foam
• Polyethylene foam

Benefits

• Lightweight
• Flexible installation
• Thermal insulation
• Noise absorption

---

4. Mass Loaded Vinyl (MLV)

MLV acts as a noise barrier rather than a vibration absorber.

When combined with butyl damping sheets, it creates a highly effective soundproofing system.

Applications

• Cabin floors
• Firewalls
• Transmission tunnels
• Chassis panels

---

Key Applications in Engine Systems

Engine Firewall Insulation

The firewall separates the engine compartment from the cabin.

Installing damping materials on the firewall can:

• Reduce engine noise
• Block vibration transfer
• Improve passenger comfort

---

Engine Cover Treatment

Modern engine covers often integrate:

• Damping layers
• Acoustic foam
• Heat-resistant insulation

These materials help suppress mechanical noise and improve engine compartment acoustics.

---

Hood and Bonnet Damping

Applying damping materials beneath the hood can reduce:

• Engine vibration resonance
• Metal panel vibrations
• High-frequency engine noise

This contributes significantly to a quieter driving experience.

---

Key Applications in Chassis Systems

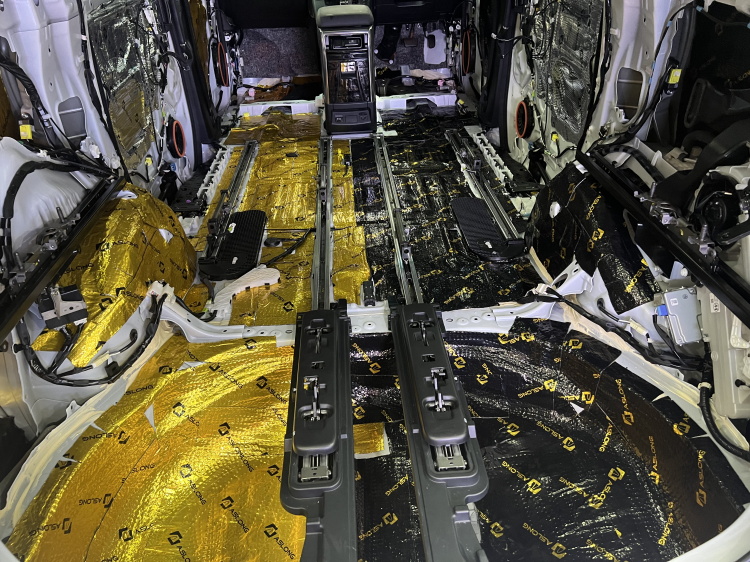

Floor Panel Damping

Vehicle floors are major pathways for road noise.

Damping materials applied to floor panels can reduce:

• Tire noise
• Road vibration
• Drivetrain resonance

This is especially important for electric vehicles where road noise becomes more noticeable.

---

Wheel Well Treatment

Wheel arches are exposed to:

• Tire impacts
• Gravel strikes
• Water spray
• Road turbulence

Butyl rubber damping sheets combined with acoustic liners significantly reduce wheel-generated noise.

---

Suspension Mount Areas

Suspension systems transfer substantial vibration into the vehicle body.

Strategically placed damping materials help:

• Reduce impact noise
• Improve ride quality
• Enhance structural durability

---

Benefits of Automotive Damping Materials

Improved NVH Performance

The most significant benefit is the reduction of:

• Noise
• Vibration
• Harshness

Resulting in a more refined and premium driving experience.

---

Enhanced Driving Comfort

Passengers enjoy:

• Quieter cabins
• Reduced fatigue
• Better communication
• Improved audio system performance

---

Increased Vehicle Durability

By minimizing vibration-related stress, damping materials help:

• Extend component lifespan
• Reduce squeaks and rattles
• Improve structural integrity

---

Better Thermal Insulation

Many damping materials also provide:

• Heat resistance
• Thermal insulation
• Improved HVAC efficiency

This contributes to overall vehicle comfort.

---

Improved Electric Vehicle Performance

Electric vehicles have fewer engine noises, making other sounds more noticeable.

Damping materials help EV manufacturers address:

• Tire noise
• Wind noise
• Chassis resonance
• Motor vibration

As a result, advanced NVH solutions have become essential in EV design.

---

Choosing the Right Damping Material

When selecting automotive damping materials, manufacturers should evaluate:

Damping Efficiency

The material should effectively reduce vibration across a wide frequency range.

Weight

Lightweight solutions support fuel efficiency and EV range.

Temperature Resistance

Materials must withstand engine compartment temperatures.

Adhesion Strength

Reliable bonding ensures long-term durability.

Environmental Compliance

Products should comply with automotive environmental standards such as:

• RoHS
• REACH
• OEM specifications

---

Future Trends in Automotive Damping Materials

Lightweight Damping Technologies

Automakers are seeking thinner and lighter materials without sacrificing NVH performance.

---

Smart Damping Materials

Researchers are developing materials that can adapt to changing vibration frequencies in real time.

---

Sustainable and Eco-Friendly Materials

The industry is increasingly adopting:

• Recyclable materials
• Low-VOC adhesives
• Bio-based acoustic solutions

to meet environmental regulations and sustainability goals.

---

EV-Specific NVH Solutions

With global EV adoption accelerating, demand for advanced damping systems designed specifically for electric platforms is expected to grow rapidly.

---

Conclusion

Automotive damping materials play a crucial role in enhancing vehicle comfort, durability, and performance. From engine compartments to chassis structures, these materials effectively reduce vibration, suppress noise, and improve overall NVH characteristics.

Technologies such as butyl rubber damping sheets, constrained layer damping systems, acoustic foams, and Mass Loaded Vinyl continue to evolve, helping manufacturers meet growing consumer expectations for quieter and more refined vehicles.

As electric vehicles and lightweight automotive platforms become increasingly common, advanced damping materials will remain a key component of next-generation automotive engineering.

FAQ

What is the best damping material for automotive applications?

Butyl rubber damping sheets are widely regarded as one of the most effective automotive damping materials due to their excellent vibration absorption, durability, and heat resistance.

Where are damping materials commonly installed in vehicles?

They are typically installed on the firewall, floor panels, doors, wheel wells, roof panels, trunk areas, engine covers, and chassis components.

Are damping materials important for electric vehicles?

Yes. EVs generate less engine noise, making road and structural noise more noticeable. Damping materials help maintain a quiet and comfortable cabin environment.

What is the difference between damping materials and sound insulation materials?

Damping materials reduce vibration at its source, while sound insulation materials block or absorb airborne noise. The best NVH solutions often combine both technologies.

How do butyl rubber damping sheets improve vehicle comfort?

They reduce structural vibrations, lower road noise, eliminate panel resonance, and create a quieter, smoother driving experience.
